Manage Roles

ML Drawings allows Admin users to create their own custom roles within the system. Each role will contain a set of permissions to determine what aspects of the system a user can access and what they can do.

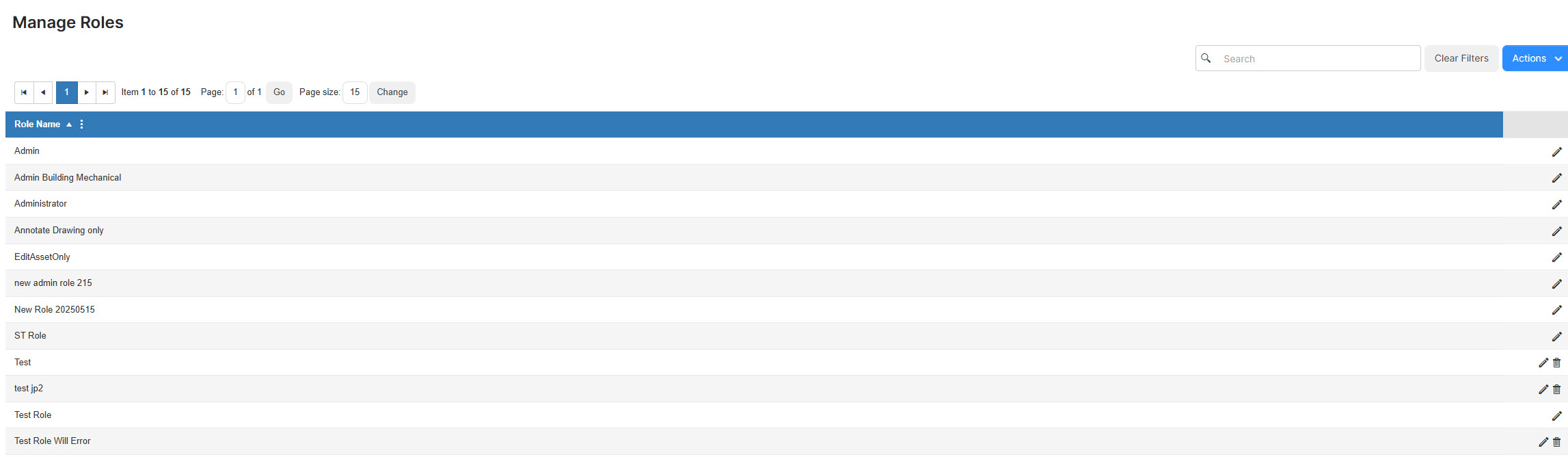

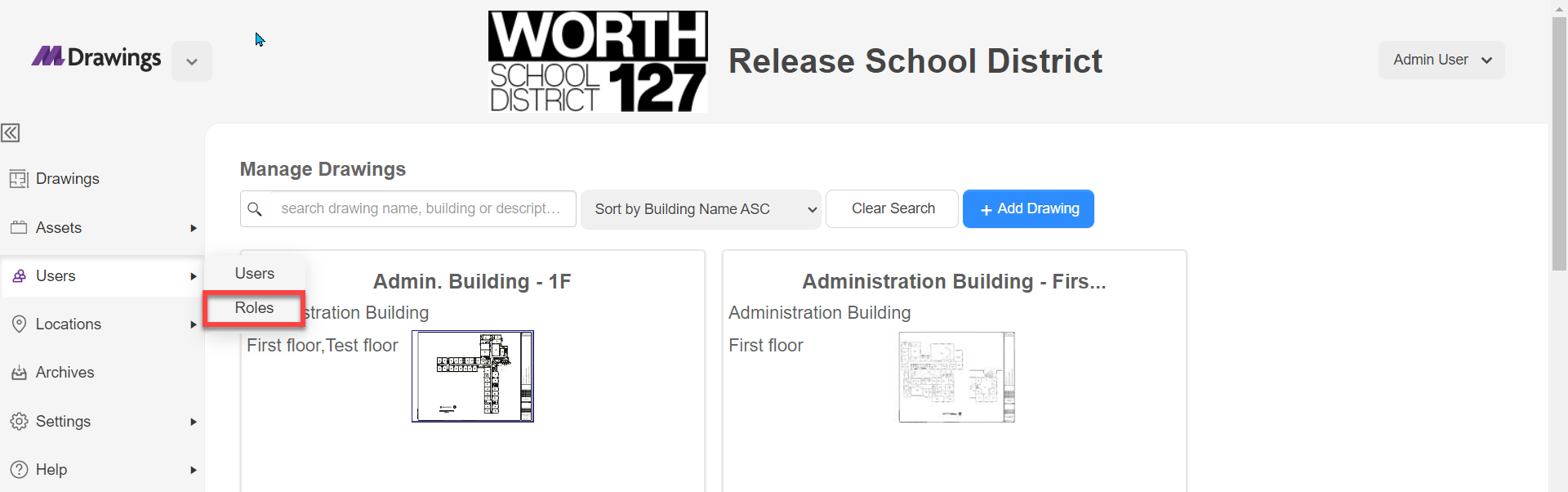

1. Select Users>  Manage Roles.

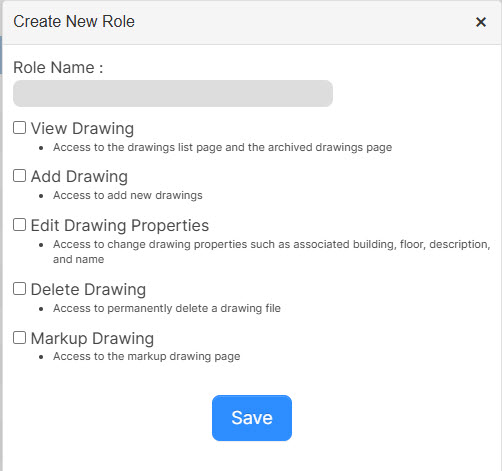

2. To add a new Role, click the () button at the top right of the page.

3. Give the Role a name and assign the necessary Permissions.

• View Drawing: Provides the user the ability to view a drawing.

• Add Drawing: Thiswill allow a user to add a new drawing.

• Edit Drawing: Users with this permission will be able to edit existing drawings.

• Delete Drawing:This permission will allow a user to delete a drawing.

• Annotate Drawing: This gives the user the ability to annotate an existing drawing.


• View Asset Stamp: The user will be able to view existing asset stamps and their information.


• Add Asset Stamp: Users with this permission will be able to add new asset stamps to a drawing.


• Edit Asset Stamp: This will allows users to edit existing asset stamps on a drawing.


• Delete Asset Stamp: Users with this permission can delete existing asset stamps.


4. Click Save

5. Repeat Steps 1 - 4 for any other Roles you would like to set up.
